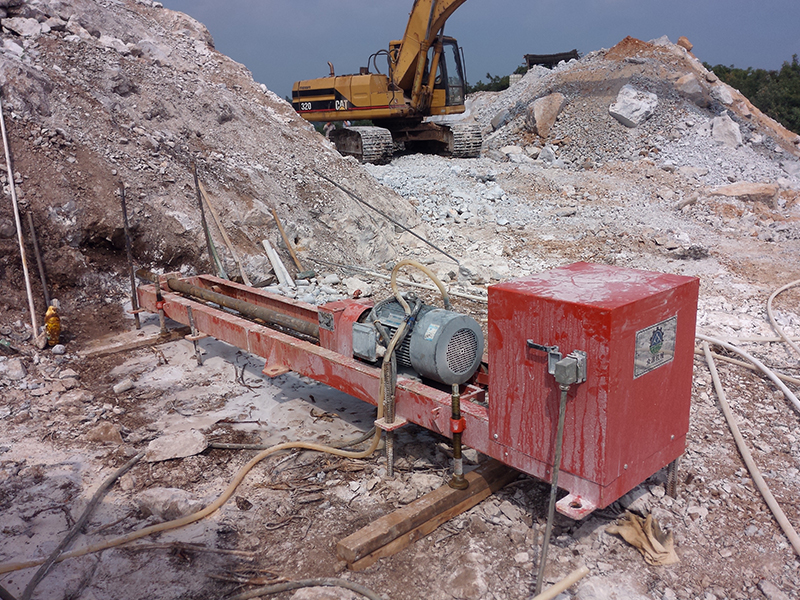

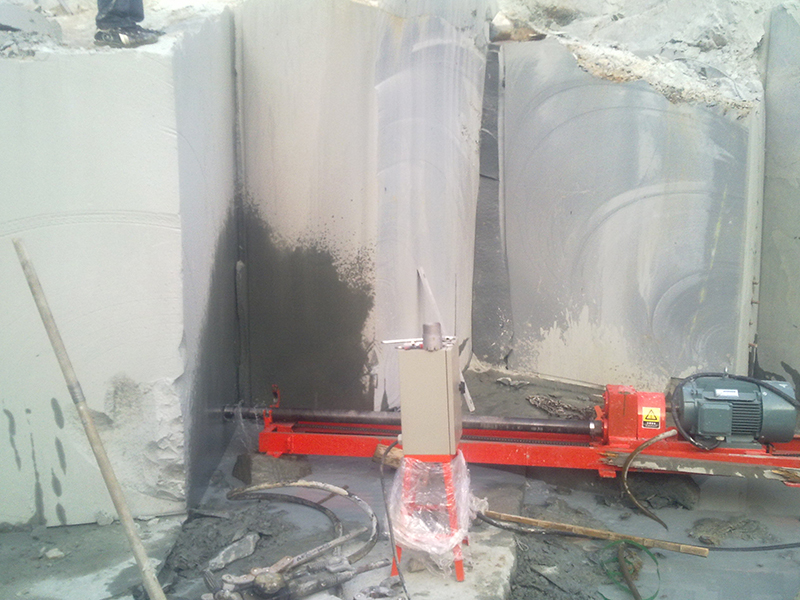

Our product is a drilling machine for horizontal wire piercing in stone mining such as marble and granite. It has the advantages of high drilling efficiency, long service life, convenient hole alignment, and less error. The automatic model adopts frequency converter to drive motor for automatic feeding, and the operation table displays the actual current and feed speed of the main machine. The manual model adopts cycloidal pinwheel reducer for manual feeding. The power control line between the main machine and the control box uses aviation plug connection, which makes the operation more convenient. The control mode adopts the principle of electrical self-control, which makes the drilling speed reach the highest value, achieves the effect of energy saving and emission reduction, and also reduces the labor intensity of the operator.
| MODEL | UNIT | ZY-75HD-M | ZY-75HD-A1 | ZY-75HD-A2 |
OPERATION MODE | Manual | Automatic | Automatic | |
MAIN MOTOR POWER | KW | 15KW-4P | 15KW-4P | 15KW-6P |
DIAMETER OF DRILL HOLE | ( MM ) | 75 | 75 | 75 |
MAX.DEPTH OF DRILL HOLE | (M) | 30 | 30 | 30 |
SPEED OF DRILLING | (M/H) | 3-5 | 3-5 | 3-5 |
| MIN.WATER-SUPPLY PRESSURE | (MPa) | 0.1 | 0.1 | 0.1 |
SINGLE FEEDING DISTANCE | (M) | 1.5 | 1.5 | 1.5 |
POWER FEEDING DEVICE | Speed reducer | Stepless speed controlled by 2 inverters | Stepless speed controlled by 2 inverters | |
DRILLING DIRECTION | Horizontal | Horizontal | Horizontal | |
NET WEIGHT | (KG) | 700 | 850 | 1000 |
